Facilities as Big as Texas, Well Almost.

Our largest batch oven is 50 ft long x 8 ft wide x 10 ft high with a corresponding spray booth. This is the largest oven known in our market area. Our four other batch ovens with corresponding spray booths gives you the ultimate advantage in faster turn times. Batch oven sizes are as follows:


To get the best adhesion possible and to meet the specifications of AAMA 2603 and 2604, and the perforce requirements of AAMA 2605, we use a five stage pretreatment system.


1. Cleaning
2. Water rinse
3. Surface Conditioner
4. Water Rinse
5. Chrome free pretreatment

3 Stage Automatic Powder Conveyor


Screen Shot 2017-09-25 at 9.56.17 AM.png

Our steel production line is over 750 feet long with a multiple stage pretreatment system. Part dimensions can range up to approximately 4 feet wide x 5 feet high. This line is constructed of an I-Beam chain system, allowing us to coat a variety of items in large or small quantities, cost effectively and efficiently. We can change color without stopping the line in approximately 10-15 minutes.

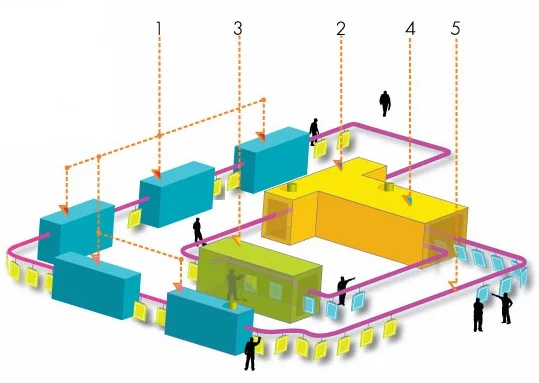

5 Stage Automatic Powder Conveyor

  1. Five Stage Wash System
  2. Dry Off Oven
  3. Automatic Powder Booth w Over-Spray aRecovery and recirculation
  4. Cure Oven
  5. Loading & Unloading Area

Our 5 stage pretreatment system that is compliant with the AAMA 2605 specification. Quality Powder Coating uses a five stage chrome free pretreatment system. Aluminum is properly cleaned and pretreated with a multi stage cleaning and pretreatment system to remove organic and inorganic surface soils and residual oxides. The pretreatment applies a chemical conversion coating to the aluminum substrate to which the organic powder coating will firmly adhere. This line has been approved by select manufacturers to apply fluoropolymer (architectural grade coatings such as Kynar) on aluminum parts and extrusions. It is capable of handling up to 25 foot lengths of extrusions.

DFW Metroplex Pick Up & Delivery


Our fleet of 24 ft box trucks can deliver throughout the DFW Metroplex. For interstate projects we coordinate with your logistics team.
